MSI H61M-P25 (B3) Motherboard - H61M-P25 (B3)
Also available: i3-2100 & i5-3470 CPUs. See other listings.
Brand: MSI
Model: H61M-P25 (B3)
Brand
MSI
Model
H61M-P25 (B3)
CPU Socket Type
LGA 1155
CPU Type
Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
Chipset
Intel H61
Number of Memory Slots
2×240pin
Memory Standard
DDR3 1333/1066
Maximum Memory Supported
16GB
Channel Supported
Dual Channel
PCI Express 2.0 x16
1 x PCI Express 2.0 x16
PCI Express x1
2 x PCI Express x1
SATA 3Gb/s
4 x SATA 3Gb/s
Onboard Video Chipset
Supported only by CPU with integrated graphic
Audio Chipset
Realtek ALC887
Audio Channels
8 Channels
LAN Chipset
Realtek 8111E
Max LAN Speed
10/100/1000Mbps
PS/2
2
Video Ports
D-Sub + DVI
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
6 x USB 2.0
Other Connectors
ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU x 1 / System x 2 FAN connectors
Front panel audio connector
Front panel connector
1 x chasis intrusion connector
1 x Clear CMOS jumper
1 x SPDIF-out connector
1 x Serial port connector
1 x Parallel port connector
Form Factor
Micro ATX
Features
OC Genie II: Auto OC to boost performance in 1 sec
ClickBIOS Concept: Easy-to-use UEFI BIOS interface
Support VGA & DVI-D output
IGP Supports DirectX 10.1, Shader Model 4.1 and OpenGL 3.0
Includes I/O shield.
Unit was pulled from a working system but is otherwise untested. This Clearance Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item.

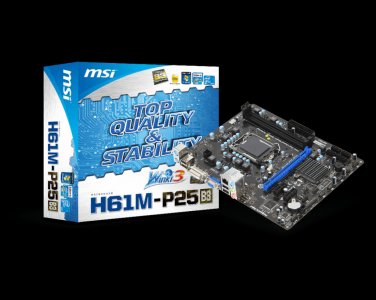

Pictures for reference only. Unit does not come with original box or other accessories.
Location: ESB1
